GS8048A-AC

Description

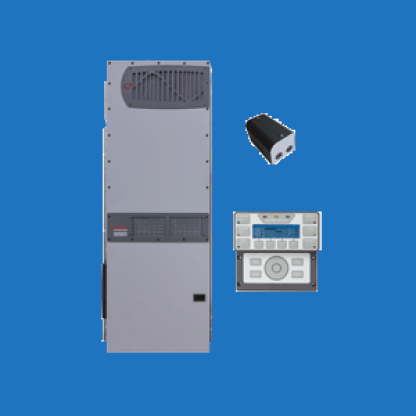

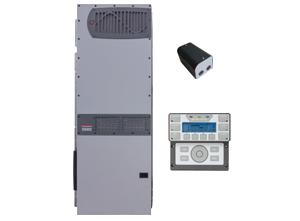

OutBack GS8048A-AC AC coupling bundle

OutBack Power has an AC Coupling bundle available for the GS8048A-AC. This bundle has the GS8048A Radian Inverter/Charger. The GS8048A-AC can have up to 6kW grid tie inverter capacity coupled to it.  You can charge and rely on battery backup when the grid is down.  Grid interactivity allows you to load shave, and have true battery backup.

More recent grid tie inverters that are listed to UL1741-SA will modulate their output with the frequency shift in the Radian inverter. The inverter frequency will also shift to limit the grid tie inverter to prevent more current than the AC Charge Current setting.

Older grid tie inverters will drop off line when the frequency shifts enough, and come back on line when the battery voltage drops down.

When operating off grid and the battery bank is depleted and the inverter shuts off on low battery, the system may not allow a charge from the grid tie inverter. An external charge source is needed to bring the battery voltage up so that it will AC couple again.  48V smart battery chargers are available through our store, for this purpose, if needed.

The generator protection relay kit allows the use of a generator to run loads and recharge the battery while the grid tie inverter is disconnected so it will not back feed the generator.

Each bundle comes with:

Radian Series Inverter/Charger

GSLC175-120/240 Load Center

MATE3s (and mounting bracket

Generator Protection Kit

30A Dual Pole Breaker (for connecting the grid-tied inverter inside the GS load center)

Documents

OutBack_Power_AC_Coupling_Bundle_Flyer

OutBack_Power_AC_Coupling_Application_Note

OutBack_Power_Radian_A-Series_Spec_Sheet

OutBack_Power_Radian_A-Series_Manual

For more information, click here.
