Description
XW PDP

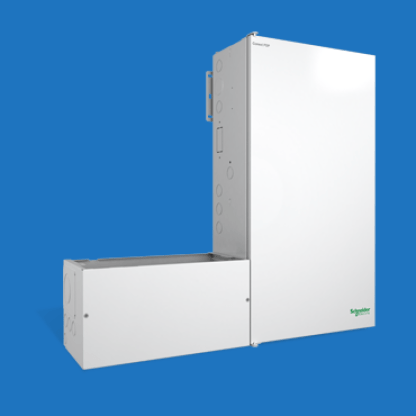

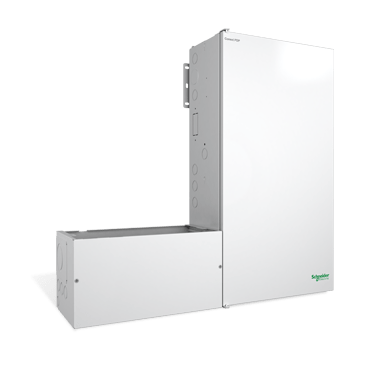

The XW+ Power Distribution Panel (XW PDP) includes a conduit box and all AC/DC disconnects with wiring to support a single inverter. The distribution panel has enough space and knockouts to add up to three inverters and/or four charge controllers. A field-reversible door with a magnetic catch simplifies access to wiring.
| Length | 48.0 |
| Width | 21.0 |
| Height | 14.0 |
| Weight | 68.0 |
| Series | Conext XW+ |
| Manufacturer Part Number | RNW865101501 |
| Warranty | 2-years |
| Description | XW+ Power Distribution Panel with conduit box for one XW+ inverter (add a connection kit for each additional inverter) |
| Long Description | Power Distribution Panel for XW+ inverters. Complete solution for one to three XW+ inverters for AC and DC breakers and distribution. Includes PDP, Conduit box, wall bracket, one 250A DC breaker, three 60A AC breakers and bypass assy.and cables. Indoor. |
Each charge controller requires the input breaker, or DC disconnect, and output breaker. The proper breaker packs are listed below.
• 100, 125VDC Breaker Master Pack (865-1080) for MPPT 80 600 output, battery side
• 80A, 125 VDC Breaker Master Pack (865-1070) for MPPT 60 150 output, battery side
• 60A, 160VDC Breaker Master Pack (865-1075) for MPPT 60 150 input, PV array side
For more information click here.
