Description

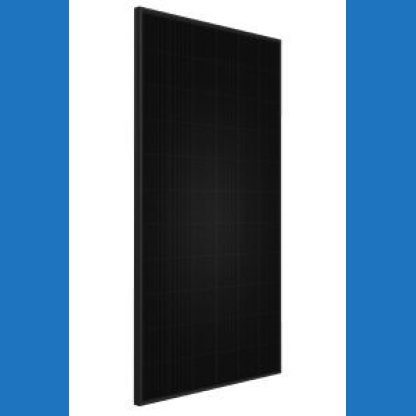

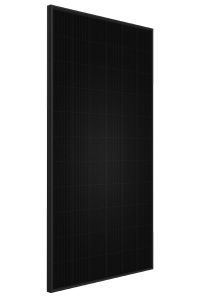

Silfab Elite SIL-380 BK, 380W 66 Cell PERC BLK/BLK 1000V Solar Panel
In the SIL-380 BK module, advanced back-contact technology reduces front cell metallization minimizing conductive losses, mechanical stress and shading for improved performance, reliability and efficiency. The reduced cell gap and elimination of external bussing boosts efficiency. Optimized performance in low-light and in all weather conditions. Lower operating temperatures of the module enhance performance and energy yield. Sleek triple black aesthetics (cells, frame and back-sheet) free from front tabbing or bus-bars make this module ideal for high-end residential solar installations.
SIL-380 BK Mechanical Specifications:
Module Technology:Â Mono PERC
Cells per Module:Â 66
Frame Material:Â Black Anodized
Frame Thickness:Â 38mm
Backsheet Material:Â Black
Connector:Â MC4
Output Cables:Â PV Wire
SIL-380 BK Electrical Specifications:
Module Watts STC:Â 380 Watts
Max Power Voltage (Vmpp):Â 38.88 Volts
Max Power Current (Impp):Â 9.79 Amps
Open Circuit Voltage (Voc):Â 45.13 Volts
Short Circuit Current (Isc):Â 10.50 Amps
Max System Voltage:Â 1000.00 Volts
Series Fuse Rating:Â 20 Amps
Module Efficiency:Â 21.40%
Temp Coefficient (Pmpp):Â -0.38%
Temp Coefficient (Voc):Â -0.28%
Documents
For more information click here.
This product must ship freight. You will need to contact for shipping arrangements and costs.
