Description

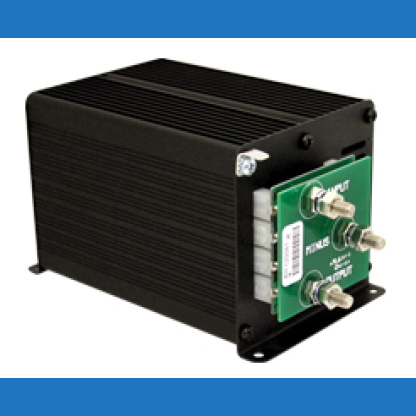

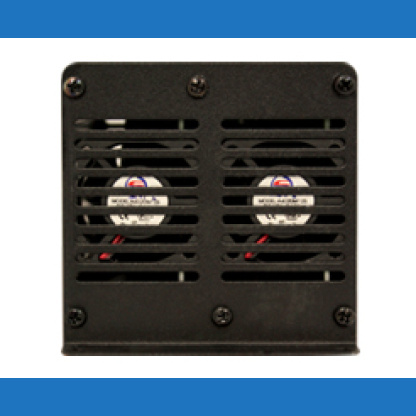

Samlex 60A Non-Isolated Step-Down 24VDC-12VDC Converter

24VDC-13.8VDC Converter

Model: SDC-60

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Design Features

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Overvoltage protection
• Short circuit protection

Specifications

Input 20-35 VDC
Output 13.8 VDC
Amps 60 Amps
Weight 2.8 (lbs)
Weight 1.27 (kg)
Dimensions 5.5 x 3.5 x 3.75 (in)
Dimensions 14 x 8.9 x 9.5 (cm)

Applications

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
• Communications

Documents

SDC-60 Spec Sheet

SDC-60 Owners Manual
