Description
Renogy 12V 100Ah LiFePO Battery

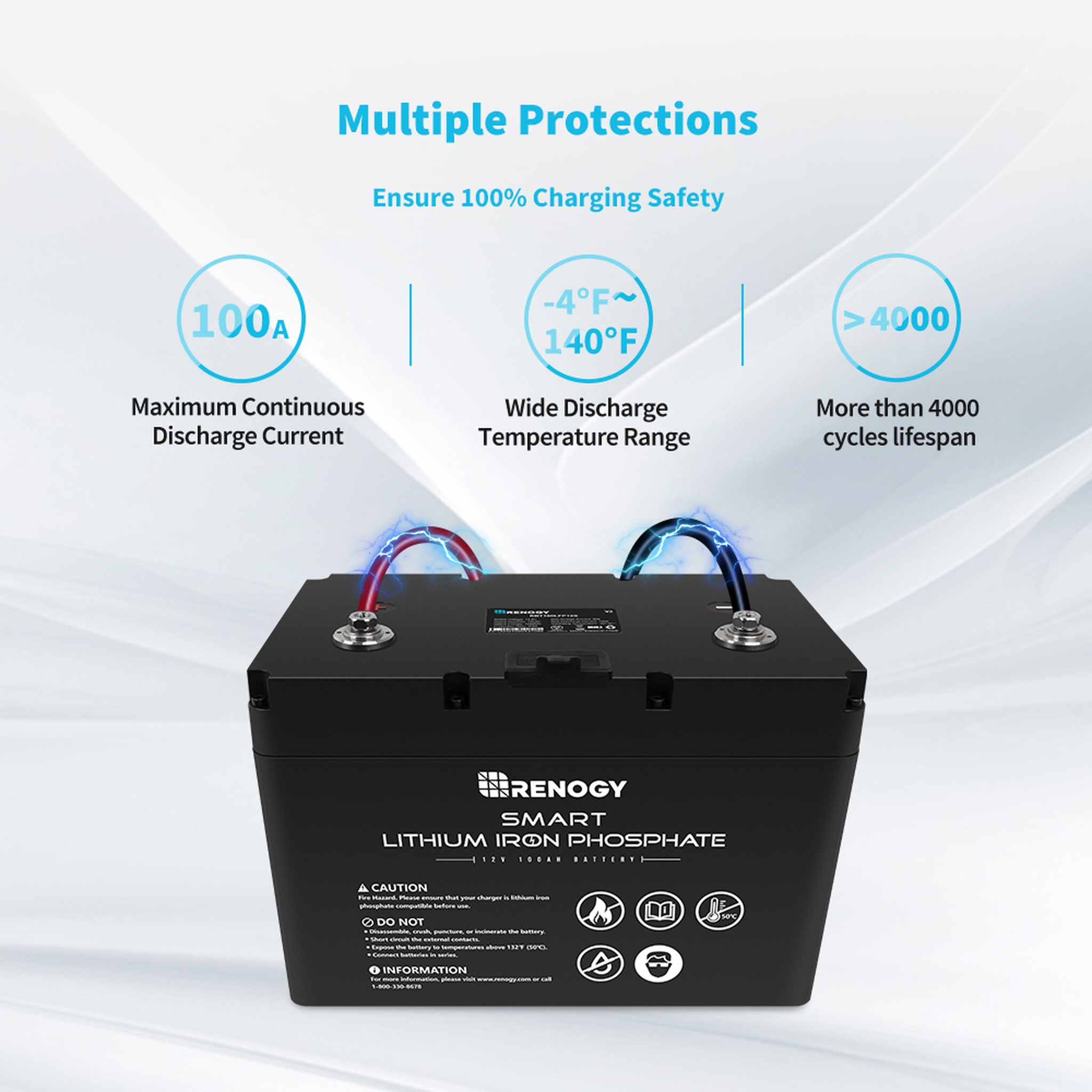

【Uncompromising Quality】 State-of-the-art battery cells ensure a lifespan of more than 4000 cycles, 100A continuous discharge current, and a wide operating temperature range.

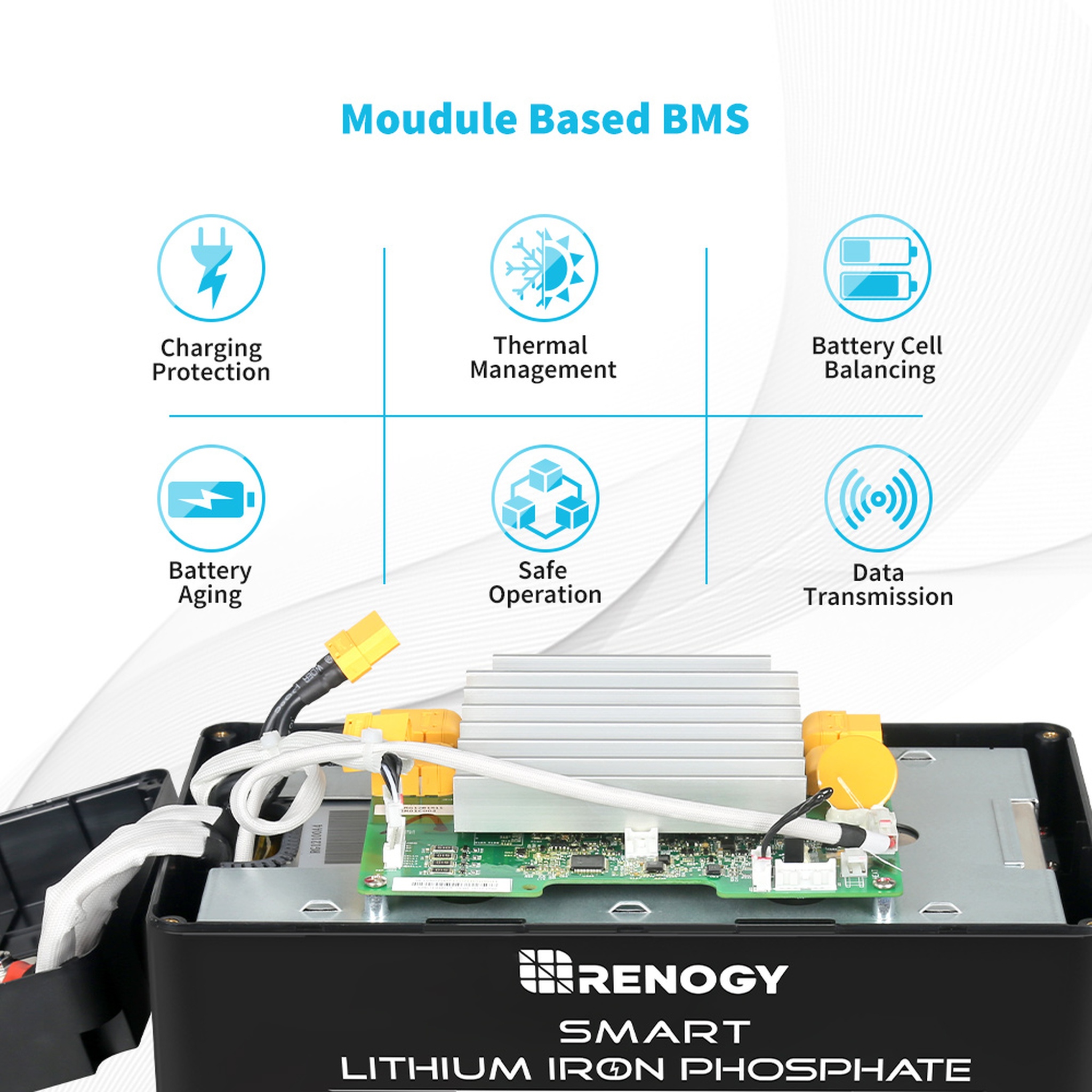

【Reliable BMS System】 The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells.

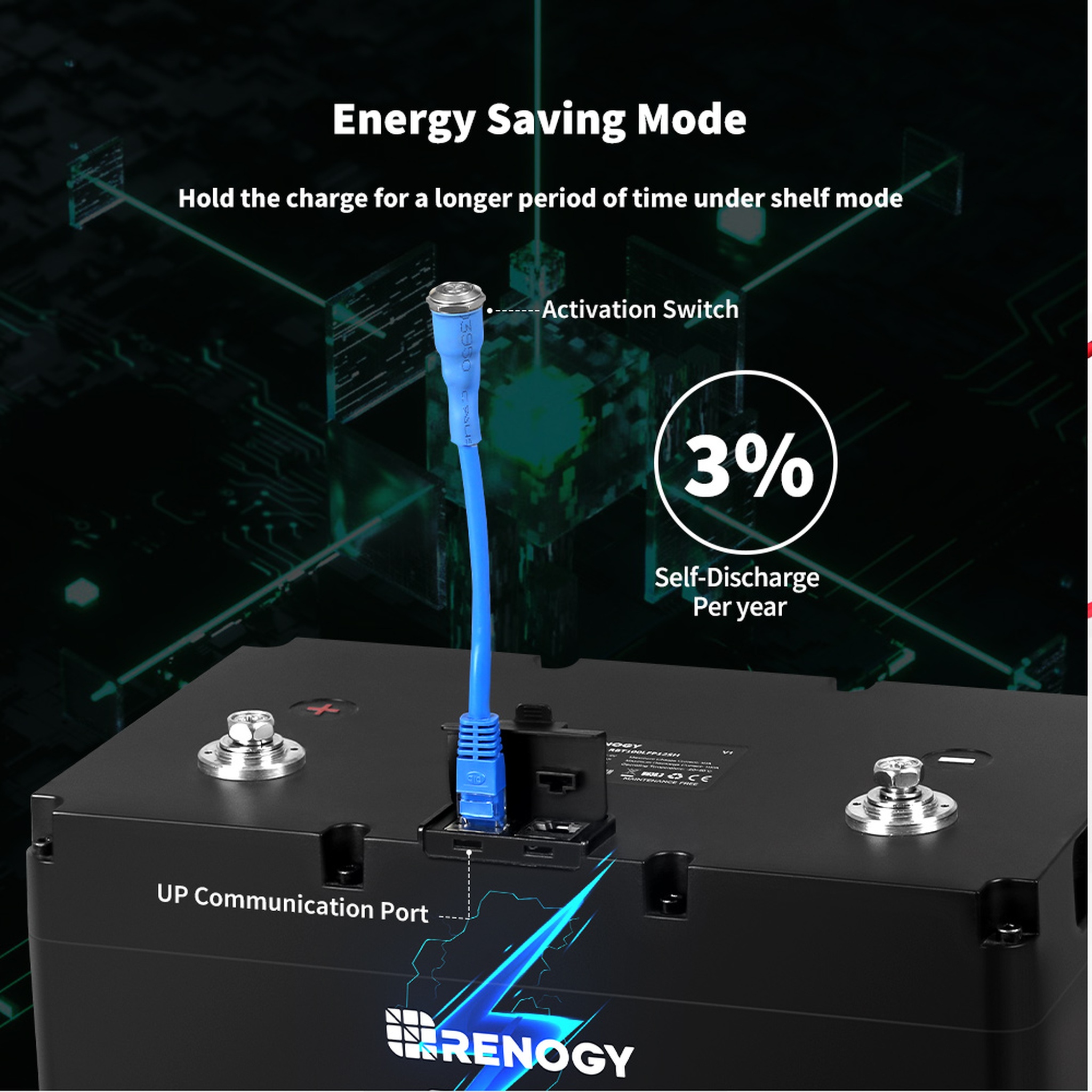

【Activation switch】 The activation switch will allow you to manually access shelf mode. This is where the battery will have a very low self-discharge rate and can hold charge for longer, protecting your battery when not in use.

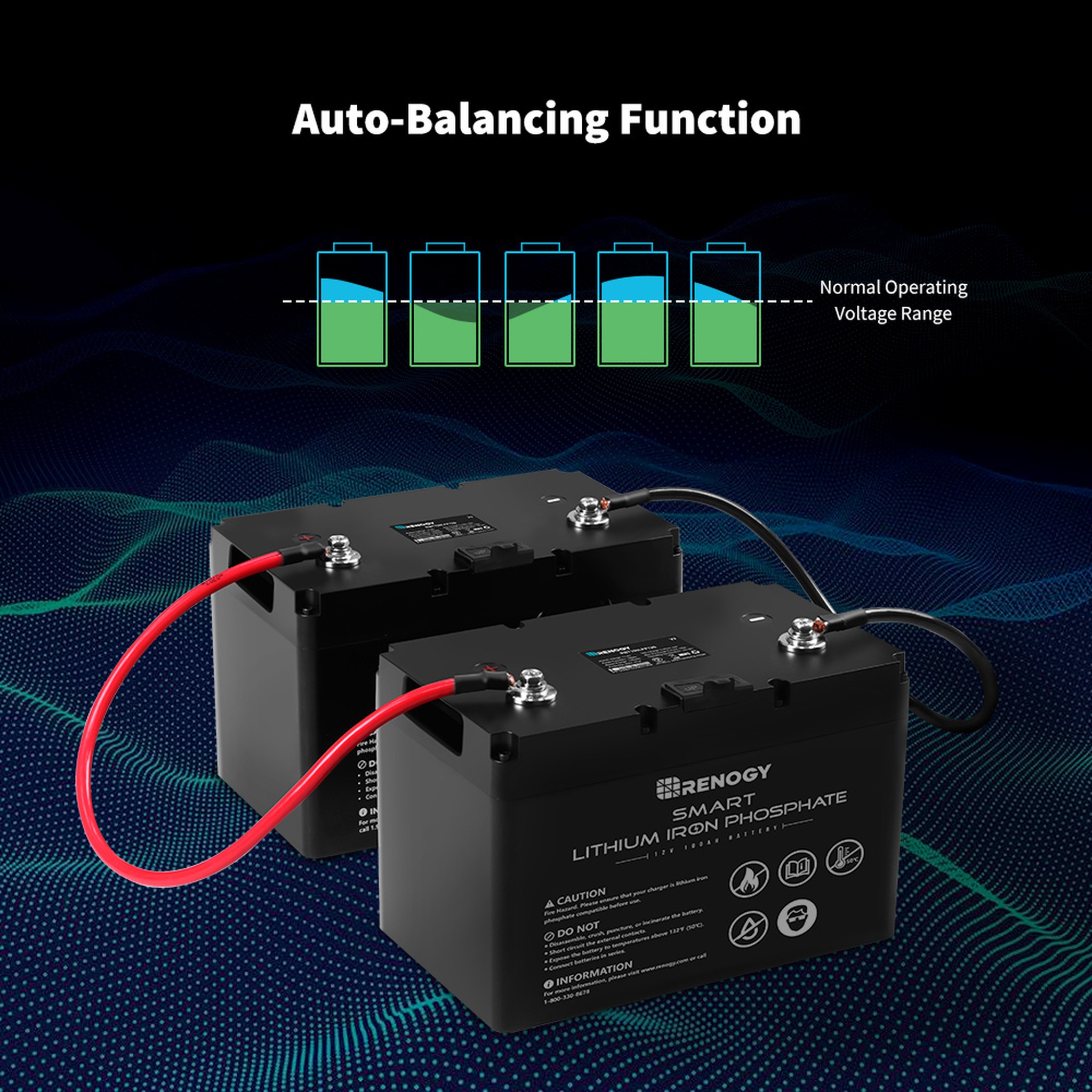

【Auto-balancing Function】 Easily connect multiple batteries in parallel with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.

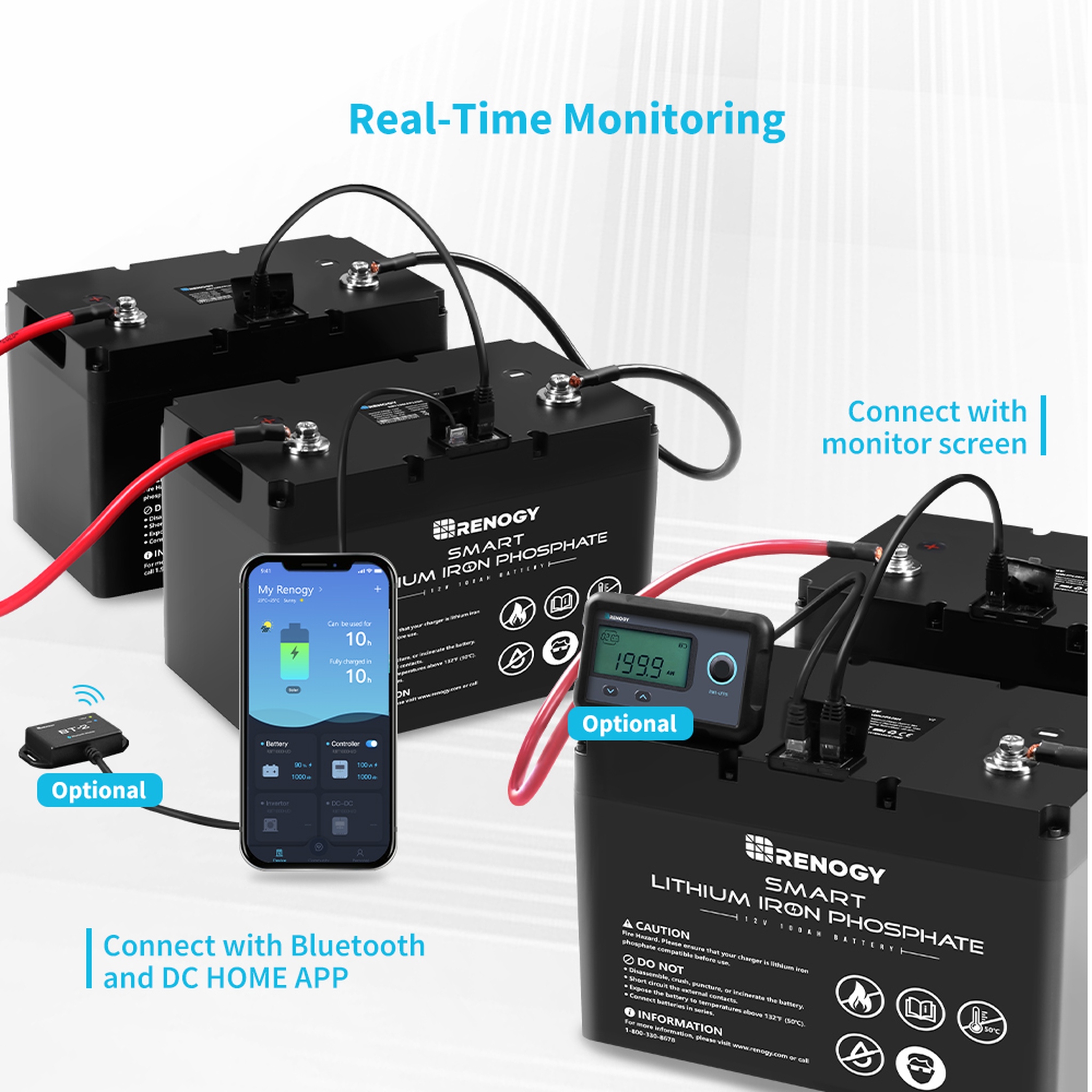

【Real-time monitor】 The battery features a RS485 communication port—enabling communication between batteries, external devices (BT-2 Bluetooth Module or Monitoring Screen) and host computers for you to monitor the charging status in real-time on the Renogy DC Home APP.
RENOGY 12V 100AH SMART LITHIUM IRON PHOSPHATE BATTERY
Operation Specifications Mechanical Specifications

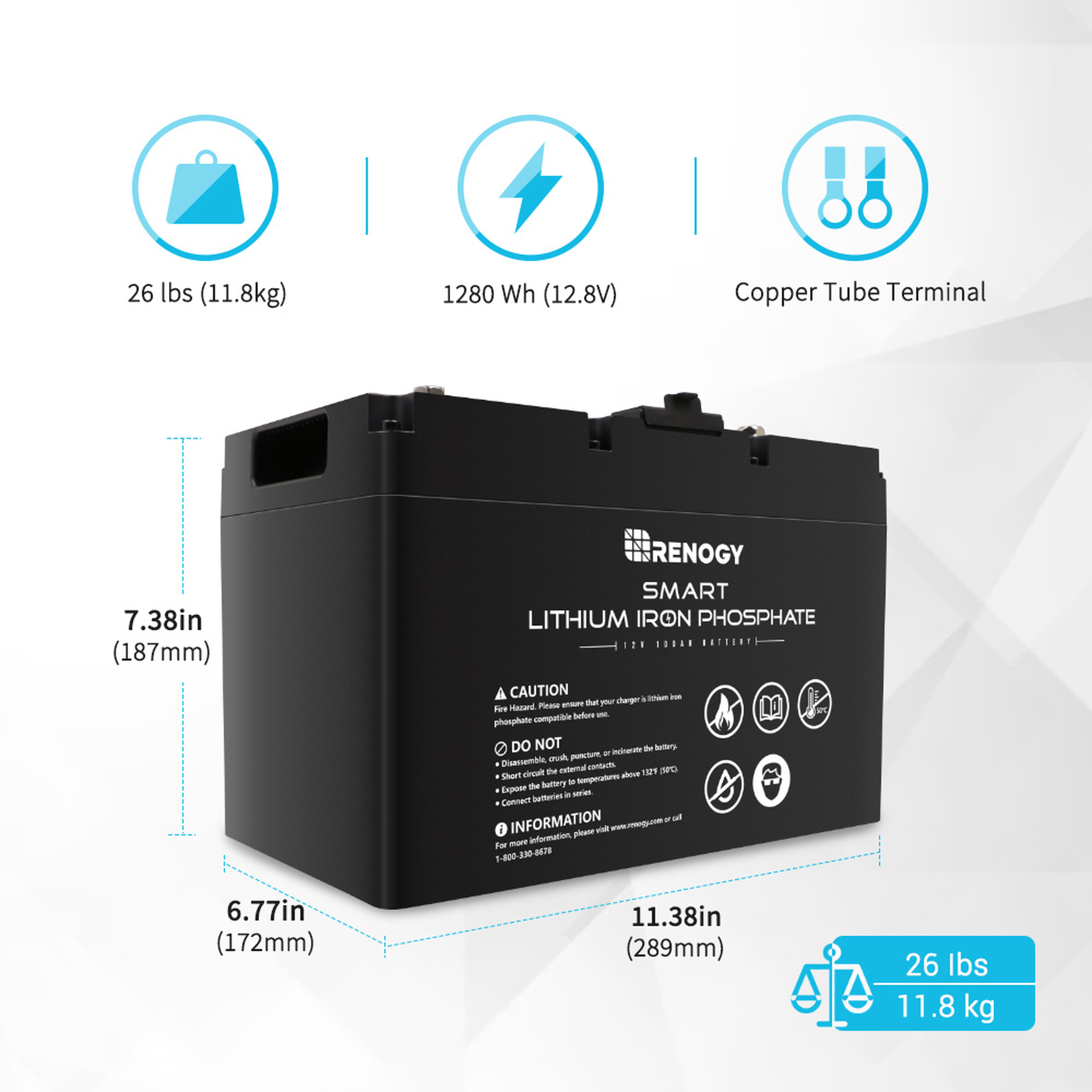

Rated Capacity 100 Ah Dimensions 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
Nominal Voltage 12.8 V Weight 26 lbs. / 11.8 kg
Voltage Range 10~14.8 V Charge Temperature 32~131°F/ 0~55°C
Cycle Life(0.2C,25℃) 80%DOD 4000 Cycles Discharge Temperature -4~140°F/ -20~60°C
Maximum Continuous Charging Current 50 A Protection Rate IP54
Maximum Continuous Discharging Current 100 A Communication Port RJ45 (RS485 Protocol)
Dischaging Voltage Range 10V~14.4V Insulation Resistance 500V DC, ≥ 10 MΩ
Standard Operation Temperature 25℃±5℃ Certifications
Storage Temperature -13~149℉ / -25~65℃ UN38.3 YES
Connection Method Parallel MSDS YES
Accessories UL 1642(Lithium Cell) YES
M8 Bolts *2 Warranty
Activation switch *1 5-years Prorated Warranty
