Description

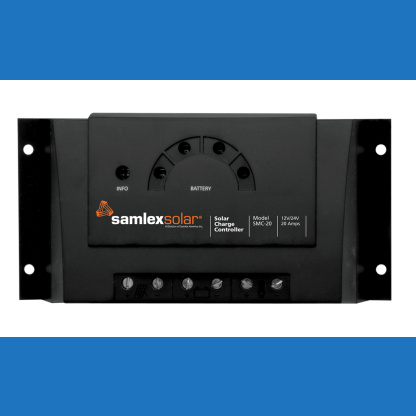

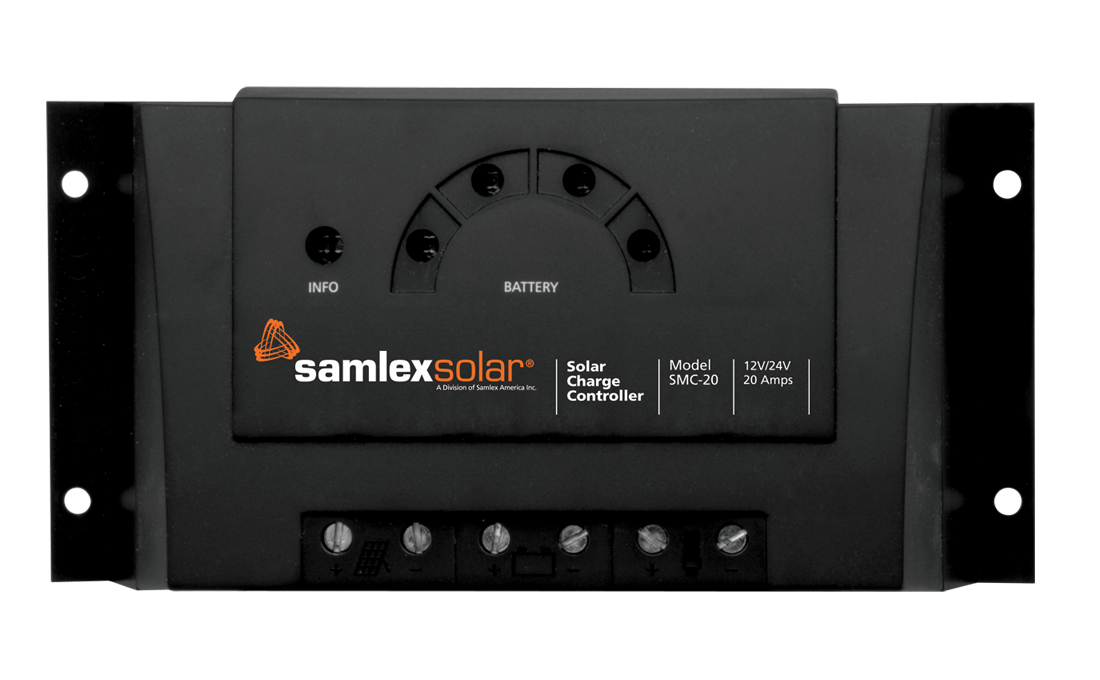

Model: SMC-20
The circuit board is completely electronically protected and with the LED user interface it is easy to check the battery state of charge at any time. Large terminals guarantee a simple connection to solar panels, battery and load. The SMC-20 works on PWM as a low loss series controller.
Design Features
• 20 Amps
• Series controller, PWM control
• Automatic detection of 12/24V
• Voltage and current regulation
• Multistage charging technology
• Current compensated load disconnection
• Automatic load reconnection
• Temperature compensation
Specifications
Input 12V / 24V
Amps 20 Amps
Weight .76
Weight .345
Dimensions 7.36 x 3.78 x 1.77 (in)
Dimensions 18.7 x 9.6 x 4.5 (cm)
Applications
• Recreation vehicles
• Service vehicles
• Boats
• Field work
• Telecommunications
• Mobile offices
• Construction sites
