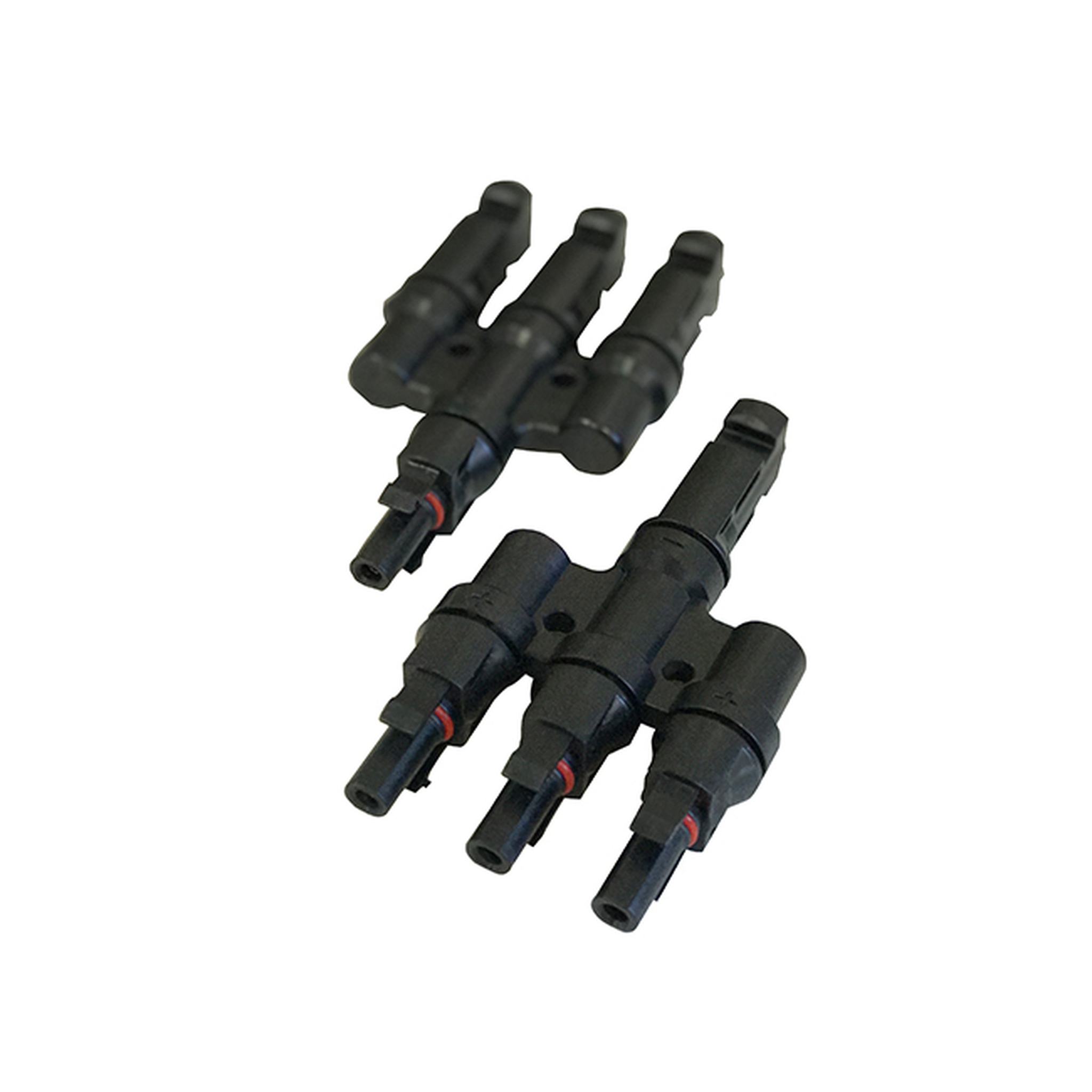

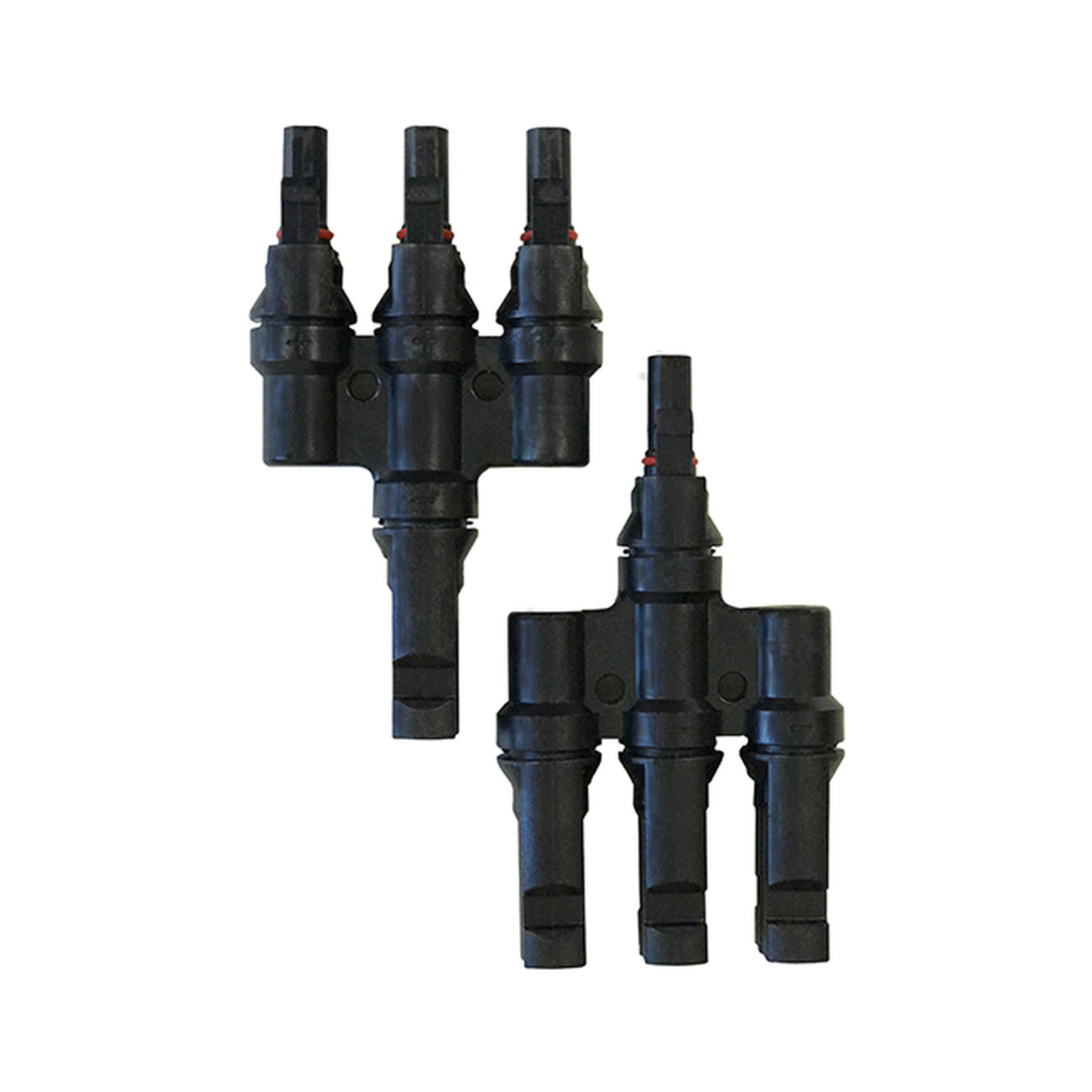

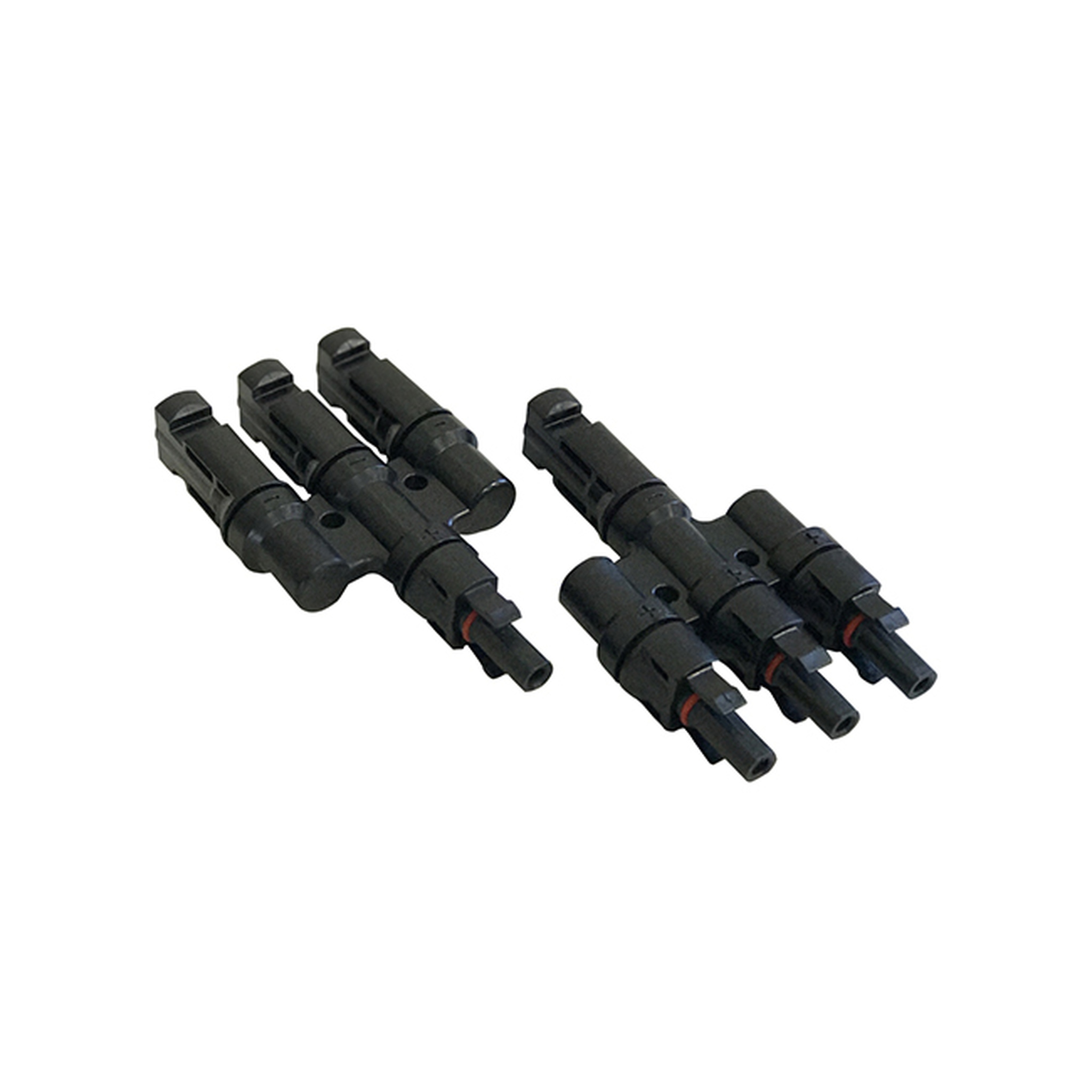

3 to 1 Branch Connectors – Pair DESCRIPTION
The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments. A rivet and lock are used to connect the cable and no extra tools are required for assembly or disassembly of plugs. 3 to 1 Branch Connectors
If you have any questions regarding this product, please call us at 1Â (844) 429-7652
KEY FEATURES
- Rated Current: 50A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
| RENOGY 3 TO 1 SOLAR BRANCH CONNECTORSÂ (PAIR) | |
|---|---|
| Maximum working voltage: DC1000V | Rated Current : 50A |
| Flame class: UL94-V0 | Pollution degree: 2 |
| Contact resistance: ≤5mmΩ | Shell Protection degree: IP67 |
| Ambient temperature range: -40°C to +85°C | Safety Level: classⅡ |
| Insertion force: ≤50N | Withdrawal force: ≥50N |
WARRANTY INFORMATION
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
